IS 5290 Explained: What Every Facility Manager Should Know Before Buying a Hydrant Valve

September 17, 2026

If you manage a factory, hospital, hotel or commercial complex in India, there is a good chance you have signed off on a hydrant valve purchase without ever being told what IS 5290 actually covers. It usually appears as one line in a tender document: "landing valve, IS 5290 certified, ISI marked." Tick the box, move on. That line is doing a lot of work. Here is what sits behind it, and the handful of checks worth making before you commit to a purchase order.

What IS 5290 actually is

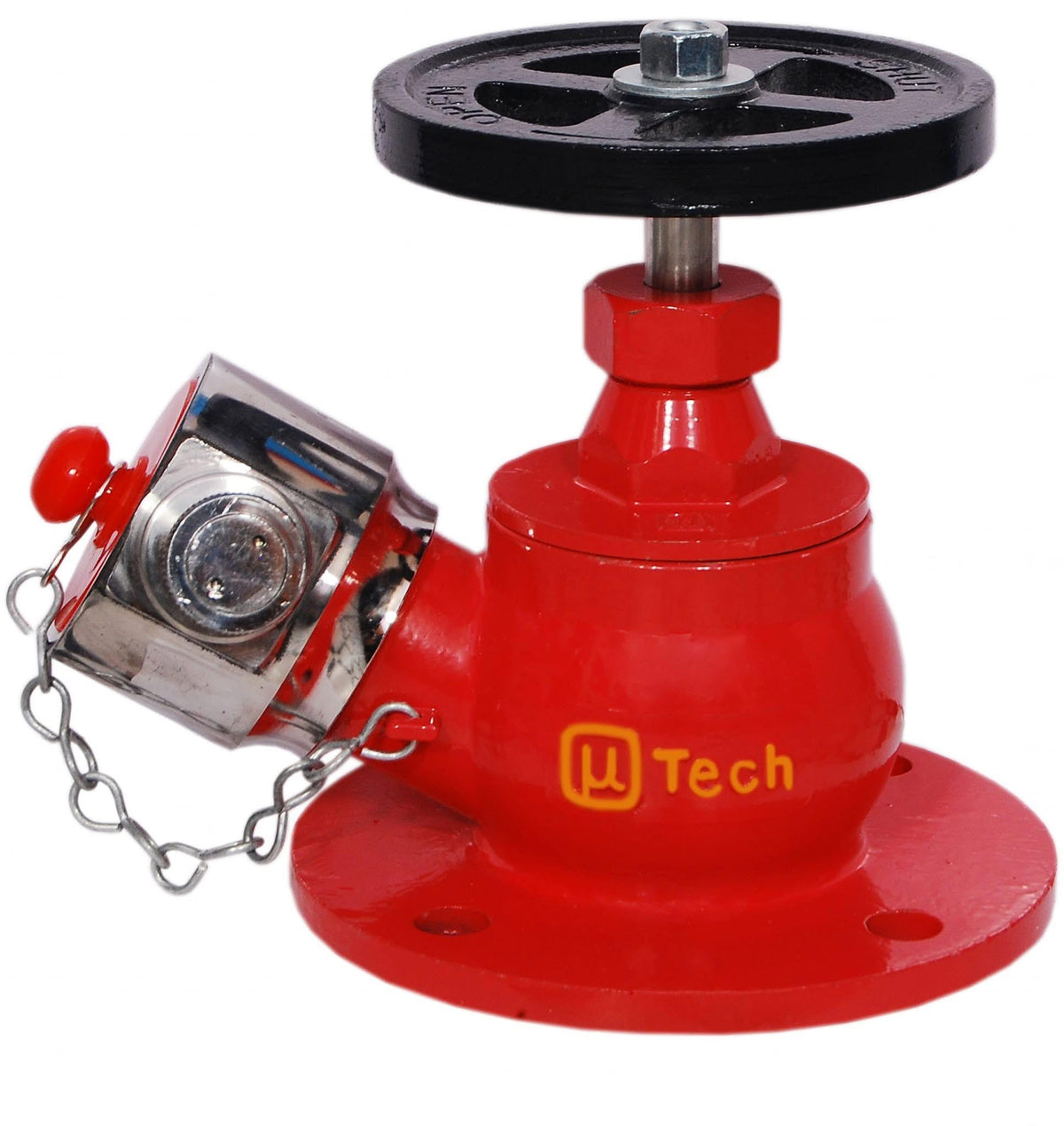

IS 5290 is the Indian Standard that governs landing valves, the manually operated outlet valves fitted to a building's wet riser or hydrant system. When a fire crew arrives, the landing valve is where they connect their hose. It is the interface between your building's water supply and the people fighting the fire. The standard sets requirements for the valve body material, the outlet coupling dimensions, the working pressure the valve must withstand, and the hydrostatic and leakage tests it must pass before it can be marked. The outlet dimension matters more than most buyers realise: a 63mm instantaneous outlet built to standard means any fire service hose in the country connects to it first time, in the dark, under pressure. A non-standard outlet is not a minor deviation, it is a valve that a fire crew cannot use.

The four variants, and when each one makes sense

Hydrant landing valves are generally offered in four body and fitting combinations. They are not interchangeable, and the cheapest option is not always the false economy people assume, nor is the most expensive always justified.

Cast iron body with SS 202 fittings. The workhorse. A cast iron body with stainless steel 202 outlet and fittings, typically 6.5kg to 8kg depending on casting thickness. Suitable for most indoor installations in factories, warehouses and commercial buildings where humidity is moderate and the valve is under cover. This is the right default for the majority of buildings.

Cast iron body with SS 304 adaptor. Same cast iron body, but the adaptor and wetted fittings step up to SS 304, which has meaningfully better corrosion resistance. Worth the premium wherever the valve sees humidity, wash-down, or an aggressive atmosphere: food processing, textile dyeing, basements with poor ventilation.

Full stainless steel body, SS 202. The entire valve in stainless. Lower maintenance over a long service life, and it does not develop the surface rust that makes cast iron valves look neglected during an inspection. A sensible choice for hospitals and hotels where the valve is visible to the public.

Full stainless steel body, SS 304. Maximum corrosion resistance. This is the specification for coastal installations, chemical plants, fertiliser units and anywhere with salt-laden or corrosive air. In a coastal facility, an SS 304 valve will outlast a cast iron one by years, which changes the maths entirely once you count replacement labour and downtime.

Five checks before you sign the purchase order

1. Look for the ISI mark on the casting, not just on the invoice. The mark should be on the product. A certificate in an email is not the same thing as a marked valve, and during a fire audit it is the valve that gets inspected.

2. Ask for the test certificate for your batch. Hydrostatic and leakage testing is part of the standard. A supplier who tests should be able to produce the certificate without hesitation.

3. Weigh the valve, or at least ask the weight. Casting weight is the single most revealing number in a hydrant valve quote. A valve advertised as 8kg that arrives at 6kg has thinner walls. Thin castings are where cost gets quietly removed, and they are the ones that fail under sustained pressure. If two quotes differ sharply on price, compare the stated weights before you compare the rupees.

4. Match the material to the environment, not the budget. A cast iron valve in a coastal plant will be seized with corrosion long before its expected life is up, and a seized valve is a failed valve. Spending on SS 304 where the environment demands it is cheaper than replacing valves every few years.

5. Confirm the flange drilling matches your riser. Standard flange dimensions save you an expensive fabrication visit on installation day. Send your riser details to the supplier before ordering rather than discovering the mismatch on site.

Maintenance nobody budgets for, and should

A hydrant valve is a piece of equipment that must work after years of doing nothing at all. That is a harder requirement than continuous duty, and it is why AMC schedules exist. Operate every valve through its full travel at least twice a year. A valve that has not been turned in three years may be seized, and you will not find out until you need it. Check the outlet coupling for damage and confirm the cap and chain are present. Inspect the hand wheel and spindle for corrosion and free movement. Look for weeping around the gland, which is the early warning before a real leak. Keep a dated log of each check, because that log is the first thing a fire safety auditor asks to see.

The short version

IS 5290 is not bureaucratic garnish. It is the reason a fire crew can connect to your building's water supply without thinking about it. When you buy, insist on the ISI mark on the casting, ask for the batch test certificate, compare casting weights rather than headline prices, and choose the body material for the environment the valve will actually live in.
